SOM IMX6

Based on the ARM Cortex-A9 technology

Small SOM module DUAL/QUAD core ARM Cortex-A9 up to 800 MHz

The SOM iMX6 is a low-power embedded Computer-on-Module based on ARM Cortex-A9 processor iMX6 by NXP.

It is an industrial computer platform in a very low profile (only 18,00mm x 68,50mm) with a wide range of interfaces and peripherals: two cameras (parallel and serial), display (HDMI, parallel and DSI), WiFi, Bluetooth, Gb Ethernet, USB, etc. Its size and all these features make this module the best option in critical projects with high processing power requirements in a very small space.

This device is only avaible under license program.

FEATURES

PROCESSOR

NXP iMX6 Dual/Quad

CPU: 2 x ARM Cortex-A9 core

NEON SIMD Co-processor

Frequency: 800 MHz
MEMORY

RAM: 512 MB LPDDR2

eMMC: 4 - 64 GB
3D/2D GRAPHICS ACCELERATOR

GPU 3D: Vivante GC2000

GPU 2D: Vivante GC355 (Vector Graphics) + Vivante GC320 (Composition)
VIDEO

Encode: MPEG-4 SP, H.263 (V2), H.264 (BP, CBP), MJPEG

Decode: MPEG-2 (MP, HP), VC-1 (SP, MP, AP), MPEG-4 (SP, ASP), H.263 (V2), H.264 (BP, MP, HP), H.264-MVC (BP, MP, HP), DivX (v3,4,5), Real Video (8, 9, 10), MJPEG, On2 VP8, AVS
CAMERA INTERFACE

1 x Parallel Camera 12-bit

1 x MIPI-CSI2 (4 lanes)
DISPLAY

HDMI: v1.4 1920x1080

Parallel: 24-bit up to 225 Mpixels/sec

DSI: up to 1280x720 (2-lanes)
DIGITAL AUDIO

1 x MIC

1 x AUX (L/R)

1 x HSO (L/R)
ANALOG AUDIO

1 x Stereo Headphone

1 x Stereo Line IN

1 x Microphone
NETWORK

Ethernet: 10/100/1000 RGMII

WiFi: Certified 802.11 b/g/n (Access Point: Yes)

Bluetooth: 4.2 + BLE
ANTENNA

1 x Internal WiFi/Bluetooth antenna

1 x U.FL connector for external antenna
USB

1 x USB 2.0 Host

1 x USB 2.0 OTG
EXTERNAL INTERFACES

1 x ECSPI

3 x SPI (MUX with Parallel Display)

1 x I2C (+1 MUX with ECSPI and with Parallel Display)

3 x UART

4 x ADC

1 x CAN

1 x PWM

1 x SD/MMC 4-bit

1 x External SATA II

1 x External NAND Flash
OS SUPPORT

Linux Kernel 4.9

Distributions: Ubuntu 16.04, Yocto 2.3, Debian
POWER SUPPLY

Power from expansion connectors: From 3,7 V to 5,5 V

Digital I/O voltage: 1,8 V (RGMII, SD and NAND can be at 3,3 V)
POWER CONSUMPTION
THERMAL

Industrial Temperature: -40ºC to +80ºC
FORM FACTOR

18,00 mm x 68,50 mm
HUMIDITY

TBD
MTBF

TBD

DOWNLOADS

Read more: SOM iMX6

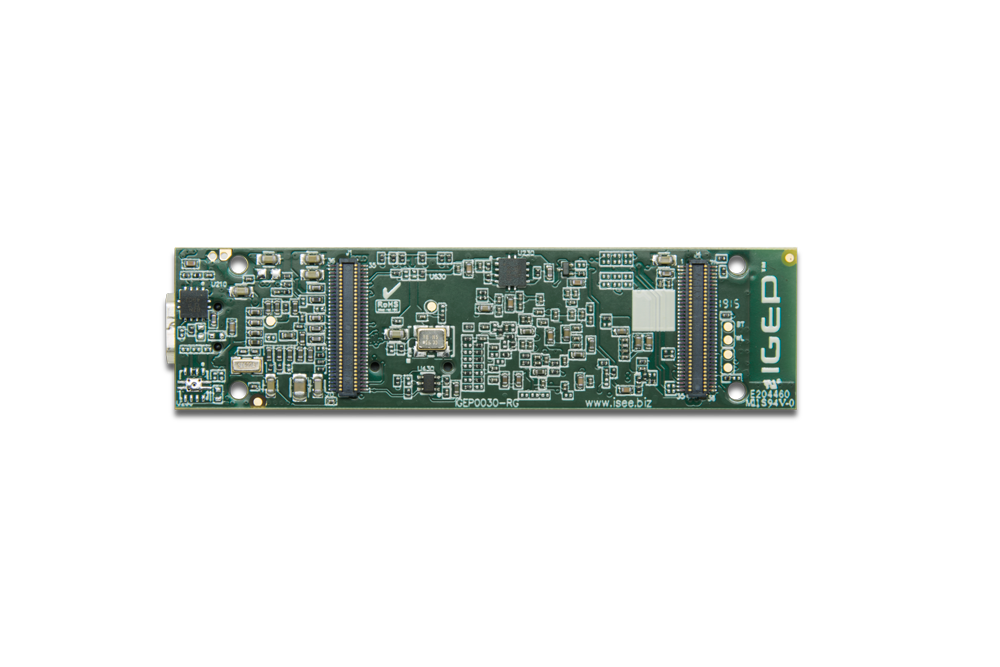

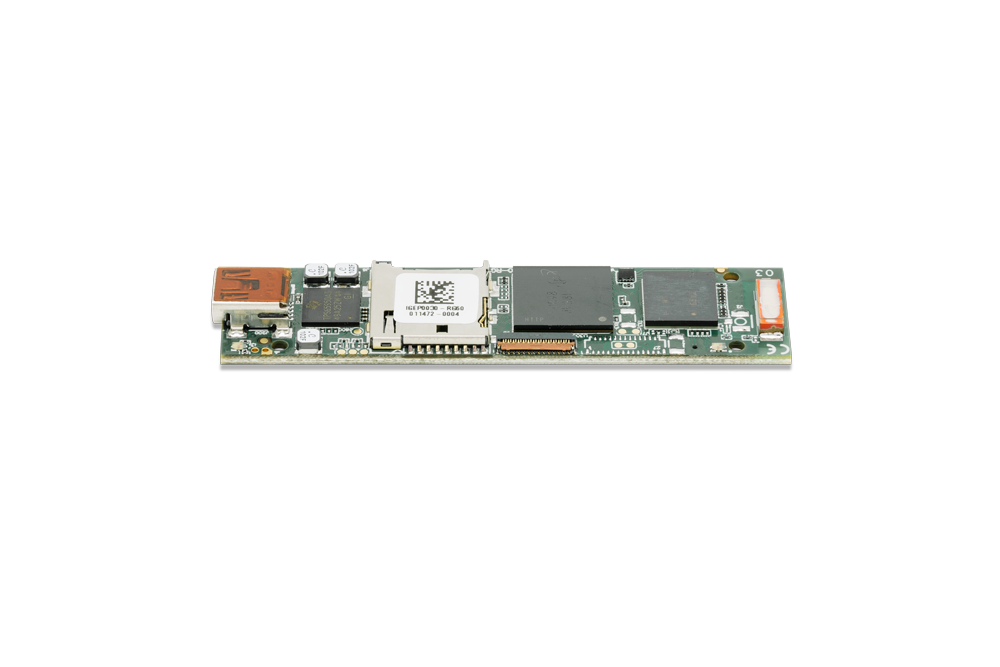

SOM DM3730

PRODUCT BRIEF

ARM Cortex-A8 technology (Legacy)

Processor board SINGLE-core ARM Cortex-A8 up to 1000 MHz

The IGEPv2 DM3730 is an industrial processor board. It unleashes laptop-like performance and expandability without the bulk, expense or noise of typical desktop machines and is the perfect solution for many industrial applications or system requirements.

FEATURES

PROCESSOR

Texas Instruments DM3730

CPU: ARM Cortex-A9

Frequency: 1 GHz

NEON SIMD Co-processor

DSP: TMS320C64+ @800 MHz

Low Power co-processor: 2 x Cortex-M4 @ 200 MHz
MEMORY

RAM: 512 MB DDR

Flash: 512 MB

EEPROM: 32 Kb

Onboard micro-SD card socket
2D/3D GRAPHICS ACCELERATOR

GPU & VPU: PowerVR SGX 530



Support: OpenGL ES 1.0, OpenGL ES 2.0, OpenVG 1.0
VIDEO

Video acceleration: H.264, H.263, MPEG-4, MPEG-2, JPEG, WMV9 and additional codecs.

Video encoder/decoder up to 720p
CAMERA INTERFACE

1 x CPI interface (12 bits)
DISPLAY

1 x DVI-D/HDMI

Resolution 2048x2048 – 48 bits
DIGITAL AUDIO

1 x I2S / McBSP / SSI
ANALOG AUDIO

1 x Stereo Line Audio In

1 x Stereo Line Audio Out
NETWORK

Ethernet: 10/100 Mbps

WiFi: Certified 802.11 b/g/n (Access Point: Yes)

Bluetooth: 4.2 + BLE
ANTENNA

Internal WiFi/Bluetooth antenna

U.FL connector for external antenna
USB

1 x USB 2.0 Host

1 x USB 2.0 OTG
EXTERNAL INTERFACES

2 x I2C

1 x MMC (1)

(1) Only in No WiFi versions.

3 x SPI

39 x GPIO (2)

(2) Maximum number of GPIO.

1 x PWM

3 x UART (3)

(3) RS232 and RS485 interfaces available.
OS SUPPORT

Linux Kernel 4.9

Distributions: Ubuntu 16.04, Yocto 2.3, Debian
POWER SUPPLY

Power from expansion connectors: 5 V

Power from JST connector: 5 V

Power from jack power: 5 V
POWER CONSUMPTION

Typical 2,2 W (4)

Maximum 2,8 W (4)

(4) Depending on software
THERMAL

Industrial temperature: -40ºC to +80ºC
FORM FACTOR

95,00 mm x 65,00 mm
HUMIDITY
MTBF

DOWNLOADS

IGEP COM Module

Hardware Reference Manual

DOWNLOAD

IGEP COM Module

Mechanics Drawings

DOWNLOAD

Read more: SOM DM3730

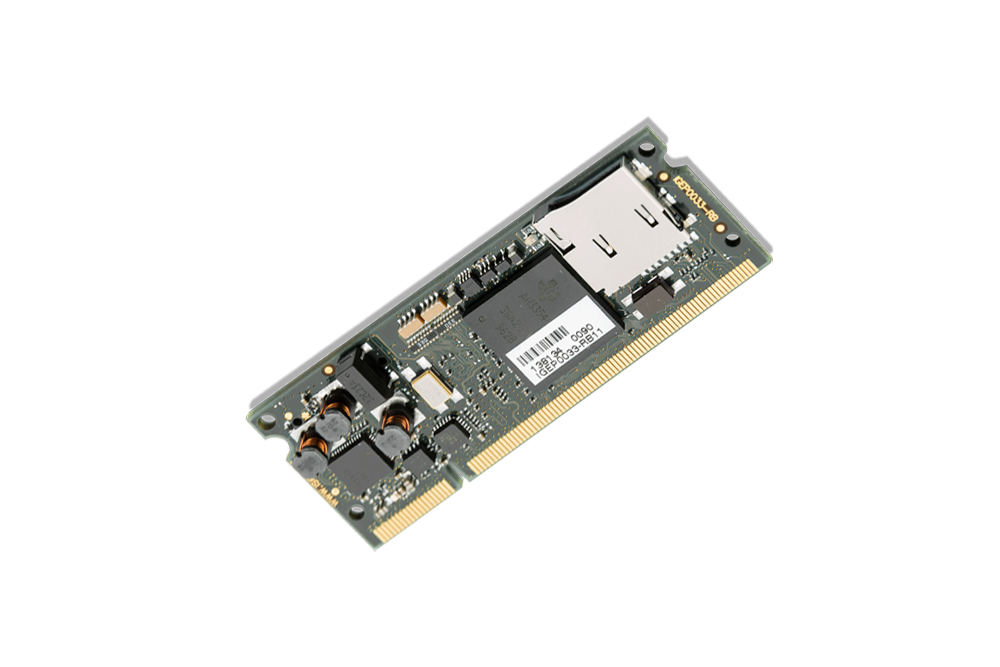

COM AQUILA AM335X

PRODUCT BRIEF

Based on the ARM cortex-A8 Technology

SODIMM module SINGLE core ARM Cortex-A8 up to 1000 MHz

The Aquila is and industrial SOM that provides wide range of features like 2D / 3D graphic accelerator, display, ethernet in a small form factor that allows you to reduce product’s size dramatically. Build your project anywhere you want.

FEATURES

PROCESSOR

Texas Instruments AM335x:  AM3352 (Standard Setup) / AM3354 / AM3358 / AM3359

CPU: ARM Cortex™-A8

NEON SIMD Coprocessor

Clock: Up to 1 GHz (depending on model)
MEMORY

RAM: 128 MB up to 512 MB DDR3 (Standard setup 256 MB)

NAND Flash: 128 MB up to 512 MB (Standard setup 128 MB)

Onboard micro-SD card socket
2D/3D GRAPHICS ACCELERATOR

GPU & VPU: PowerVR SGX 530 (AM3354. AM3358, AM3359)

Support: OpenGL ES 2.0, OpenGL 2.0, OpenVG 1.0
VIDEO

Encode: H.264, H.263, MPEG-4, MPEG-2, JPEG, WMV9 up to 720p (AM3354, AM3358, AM3359)

Decode: H.264, H.263, MPEG4 (SP), WMV9, and JPEG up to 720p (AM3354, AM3358, AM3359)
DISPLAY

Parallel: RGB 24 bits up to 1400 x 1050

Touchscreen: On board 4 -wire Resistive + Capacitive through I2C and SPI
DIGITAL AUDIO

1 x I2S (McASP)
NETWORK

Ethernet: 10/100 Mbps
USB

1 x USB 2.0 Host

1 x USB 2.0 OTG
EXTERNAL INTERFACES

1 x I2C

1 x CAN

1 x SPI

14 x GPIOs

1 x PWM

8 x ADC

3 x UART

2 x SD / MMC

1 x GPMC (disables CAN and MMCs)

1 x JTAG
OS SUPPORT

Linux: Yocto, Ubuntu, Debian
POWER SUPPLY

Power Supply: 5 V

Digital I/O voltage: 3,3 V
POWER CONSUMPTION

Typical 1,2 W (depending on software)

Maximum 1,5 W (depending on software)
THERMAL

Commercial temperature: 0 ºC to +60 ºC

Industrial temperature: -40 ºC to +85 ºC
FORM FACTOR

67,60 mm x 26,00 mm

Ka-Ro Electronics TX48 Form Factor Compatible
HUMIDITY

93% relative Humidity at 40 ºC, non-condensing (according to IEC 60068-2-78)
MTBF

> 100000 hours

DOWNLOADS

SOM Aquila

Hardware Reference Manual

DOWNLOAD

Read more: SOM AQUILA AM335x
