Expansion board for SMARC modules

An unique development board for any SMARC module

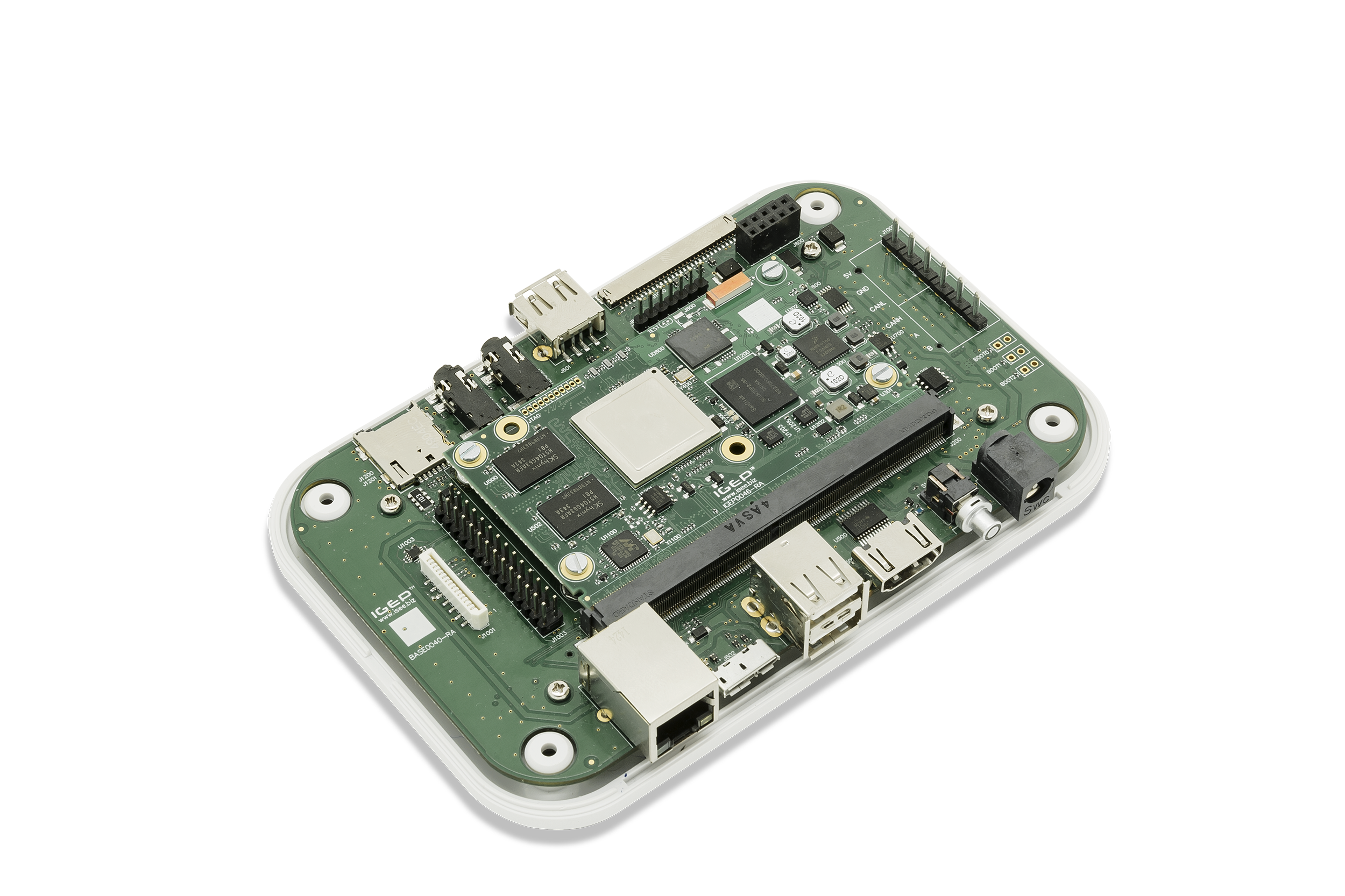

The SMARC EXPANSION is a fully equipped baseboard that access to almost all SMARC functionalities. It has been designed to be used as the fastest way to develop and check the user’s final application before building a prototype, saving costs and reducing time to market.

This model can be used with all the SMARC series modules. Thanks to this design, the user only need to purchase one Expansion board to check all the SMARC modules manufactured by ISEE Tech.

FEATURES

CONNECTORS

1 x SMARC^TMconnector

1 x Power Supply (+5 V) connector

2 x 10/100/1000 Mbps Base RJ45

1 x HDMI Type A receptacle

1 x LCD 24-bit connector

1 x Touchscreen connector

1 x XLCD expansion 40-pin header

1 x LVDS expansion 24-pin header

2 x CSI connector, 2-lanes

1 x Parallel Camera expansion 14-pin header

1 x Stereo Line Input Mic/Line

1 x Stereo Line Output Headphone

1 x I2S 14-pin header

3 x USB 2.0 type A receptacle

1 x USB 3.0 type AB receptacle

1 x USB2 expansion 14-pin header

1 x Modem USB interface

1 x mSATA interface

1 x PCI expansion 20-pin header

1 x Micro-SD connector

1 x SIM-card connector

2 x DSI connector

2 x CAN bus 6-pin header

1 x SPI 20-pin header

1 x I/O expansion 28-pin header

4 x Serial UART 3V3 expansion 6-pin header

FEATURES

1 x Button-LED (2 LEDs: red, blue)

3 x Boot jumpers

1 x Control 20-pin header

DIMENSIONS

142,00 mm x 90,00 mm (1)

(1)Without case.

CASE DIMENSIONS

150,00 mm x 100,00 mm x 30,00 mm

Downloads

SMARC BASE

Hardware Reference Manual

DOWNLOAD

SMARC

SMARC Guides

DOWNLOAD

SOM

Complete SOM (System-on-Module) boards with small size and a full range of interface and peripherals, manufactured with different processors to cover all user’s needs.

SOM modules are products with their own form factor and wide range of features. These are very small SOM (System-on-Module) systems which allows a drastic decrease of size in the final product with all the functionalities needed, with this help, the designers can optimize their developing and manufacturing time and cost of new products.

These modules need a Carrier Board to expand all their possibilities and offer the needed connectors to interact with user’s final application.

SOM modules can run complete Operating Systems and offer extended connectivity possibilities with external peripherals.

According the final application needs, there is possible to choose between different sizes and processors, offering the possibility to find the perfect match for every project.

SOM AQUILA AM335x

SODIMM MODULE SINGLE CORE ARM CORTEX-A8 UP TO 1000 MHz

The SOM Aquila AM335x is an industrial SOM that provides wide range of features like 2D/3D graphic accelerator, display, Ethernet and others in a small form factor that allows you to reduce product’s size dramatically. Build your project anywhere you want.

MORE INFO

SOM DM3730 (LEGACY)

SMALL MODULE SINGLE CORE ARM CORTEX-A8 UP TO 1000 MHz

The SOM DM3730 provides a wide range of features like 2D/3D graphics accelerator, display and a complete connectivity to suit any kind of IoT application. All of this in a very reduced size which allows build a powerful system not limited to space requirements.

MORE INFO

SOM IMX6

SMALL COM MODULE DUAL/QUAD CORE ARM CORTEX-A9 UP TO 800 MHz

The SOM iMX6 uses the same form factor that SOM DM3730 and with a Dual or Quad-core iMX6 processor. This module combines the small size requirements with capabilities of a Quad-core processor, being this product the best choice for any complex project.

MORE INFO

News

NEWS

ISEE Tech has already established in the exDelphi headquarters in Barcelona to carry out its daily activity. This action should be put in context of the reindustrialization of the Delphi factory located in Sant Cugat del Vallès. ISEE Tech , J. Juan, Gutmar and Guilera will take part in this process.

ISEE Tech , specialized in Embedded Systems and focused on small industrial computers, incorporates SMARC platforms among its products. The company, based in the Polígon Can Magí of Sant Cugat del Vallès, expands its portfolio of products and services with these electronic equipment, a family of modules that follow the standard defined by the SGET.

Endoscopy equipment, vision control systems, camera control, alarm systems, access control, lighting control, telephone switchboard systems, control of industrial machinery or systems suitable for the automotive sector, automotive ISEE Tech devotes its efforts to the design, development and manufacture of electronic equipment that can be implemented in all kinds of sectors.

Tel. (+34) 93 315 30 86 This email address is being protected from spambots. You need JavaScript enabled to view it.

Press Kit

SMARC Modules

SMARC (Smart Mobility ARChitecture) is a versatile small form factor computer module definition focused in applications with low power, low cost and high performance requirements.

SMARC is one of the standards defined by SGET (Standardization Group for Embedded Technologies). In this are fixed the form factor and pinout of the modules.

There are defined two module sizes: the bigger (82mm x 80mm) is proposed for X86 devices and the smaller (82mm x 50mm) is oriented to applications using ARM processors. ISEE Tech has adapted the small size to develop their new platforms.

The standard also defines a fixed pinout, being the same in all modules and sizes. These are a 314 edge fingers that mate with a low profile 314 pin 0.5mm pitch right angle connector.

With same size and pinout, it is possible any kind to scalability in your projects, being possible to move to other module with more processing capabilities or using other in which specifications have better match with the final application.
